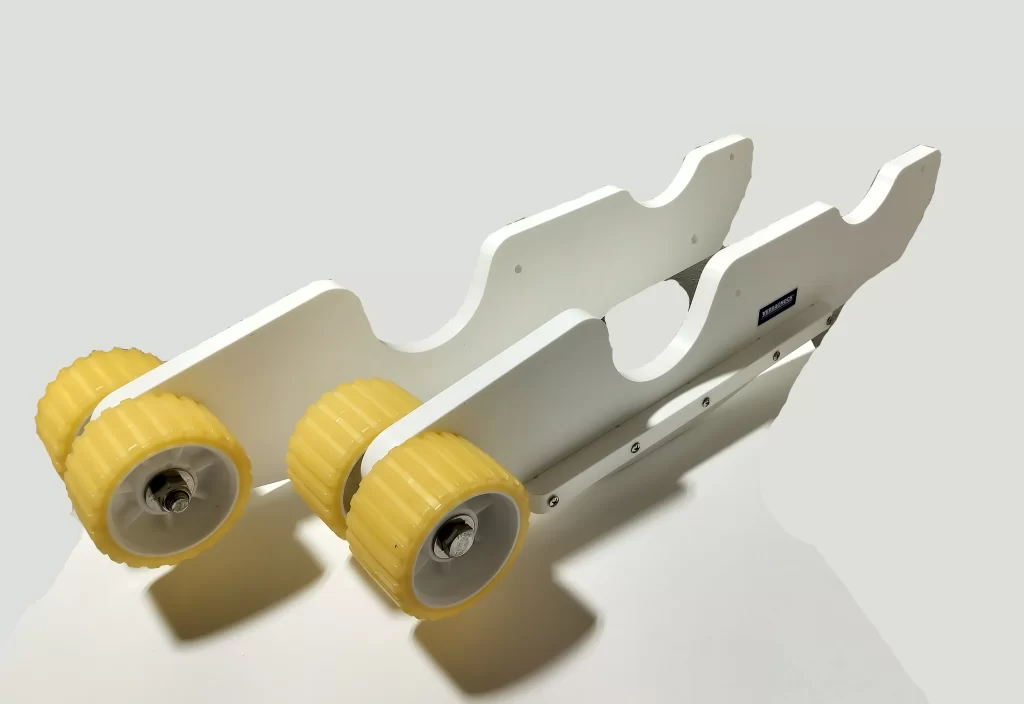

VersaChock extension arms are designed for use with model VCTILTHD davit chocks. Adds aproximately 12″ to arm length.They assist loading for platforms which are higher above the water.

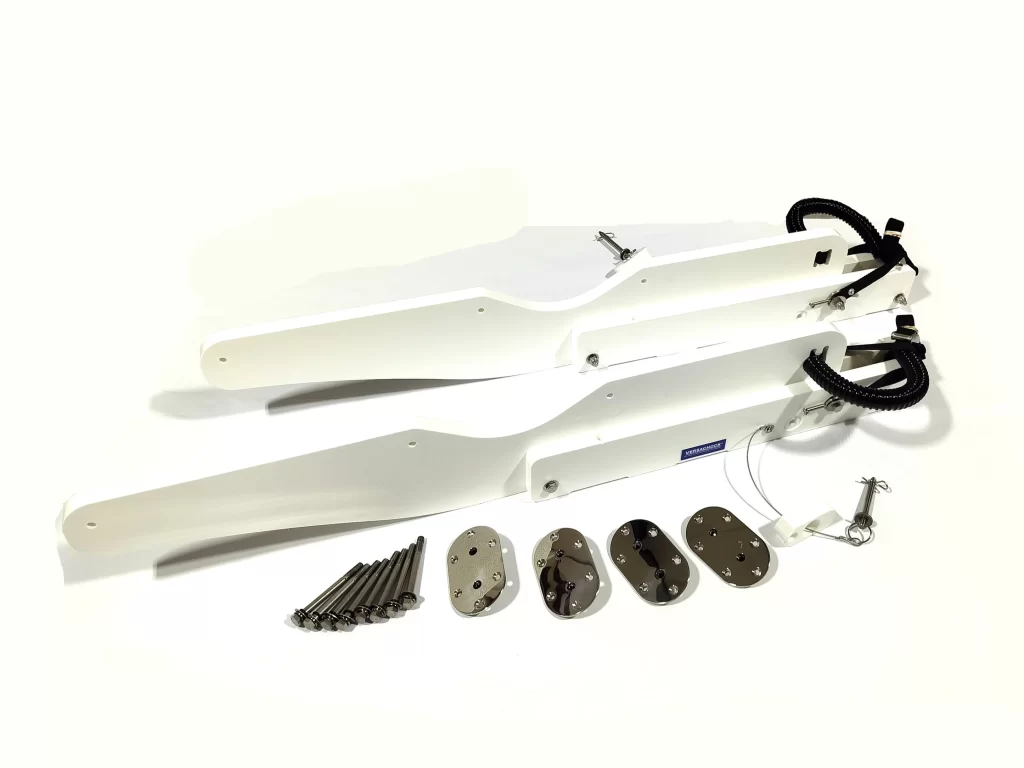

Tilting dinghy davits by VersaChock allow for easy loading of lighter weight dinghies onto swim platforms. Davits are removable by simply removing 4 bolts from our exclusive, super low-profile threaded deck plates (mini poly wrenches included, which are attached to hitch pin lanyards to prevent dropping them in the water!). Davit arms have an automatic self-latching feature, which locks the arms when rotated down (safety hitch pins must also be installed for securing arms). Limit straps are also included to limit the angle of the arms while loading. . Various winch options are offered separately. Also works great with VersaChock’s exclusive blind fastener system (VCBLINDWIDEDBL) when access to backside of mounting surface is not possible! Capacity: 350 lbs (standard platform mounting)/ 250 lbs (narrow platform mounting). Twenty four 1/4″ screws required for installation (not included). Dimensions (apx.) – 47″ L x 5″ W x 7″ T.

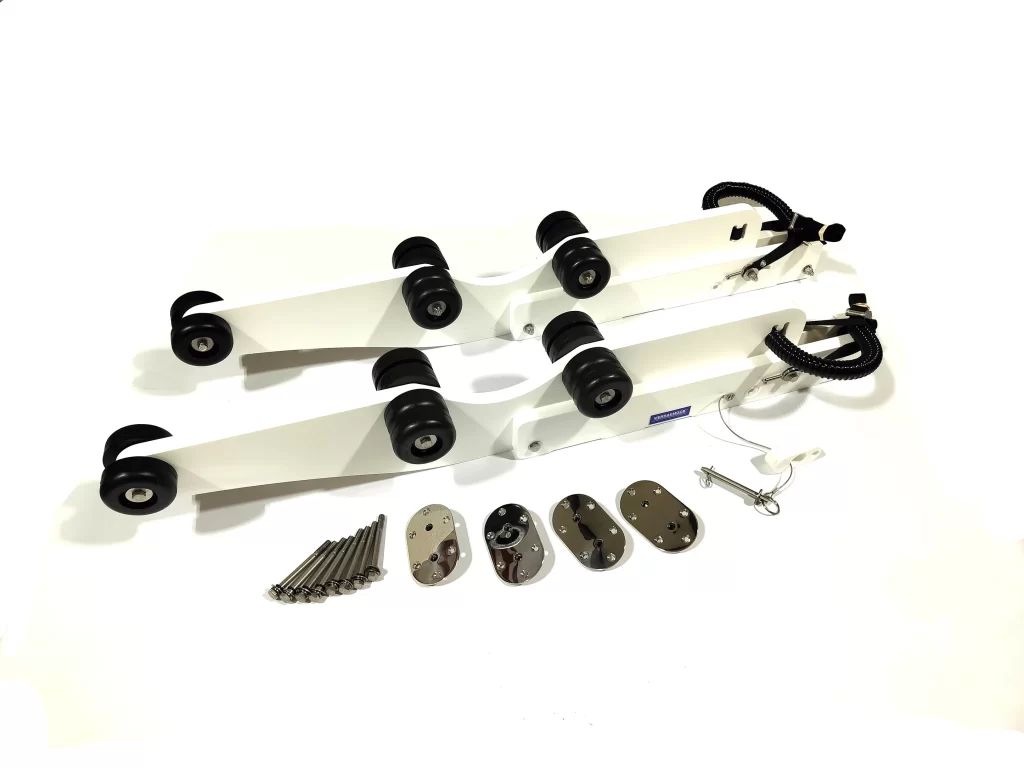

Tilting dinghy davits with wheels by VersaChock allow for easy loading of lighter weight dinghies onto swim platforms. Davits are removable by simply removing 4 bolts from our exclusive, super low-profile threaded deck plates (mini poly wrenches included, which are attached to hitch pin lanyards to prevent dropping them in the water!). Davit arms have an automatic self-latching feature, which locks the arms when rotated down (safety hitch pins must also be installed for securing arms). Limit straps are also included to limit the angle of the arms while loading. Includes 20 soft rubber wheels to help load watercraft and offers great support and cushioning for most hull shapes. Various winch options are offered separately. Also works great with VersaChock’s exclusive blind fastener system (VCBLINDWIDEDBL) when access to backside of mounting surface is not possible! Capacity: 350 lbs (standard platform mounting)/ 250 lbs (narrow platform mounting). Twenty four 1/4″ screws required for installation (not included). Dimensions (apx.) – 47″ L x 5″ W x 7″ T.

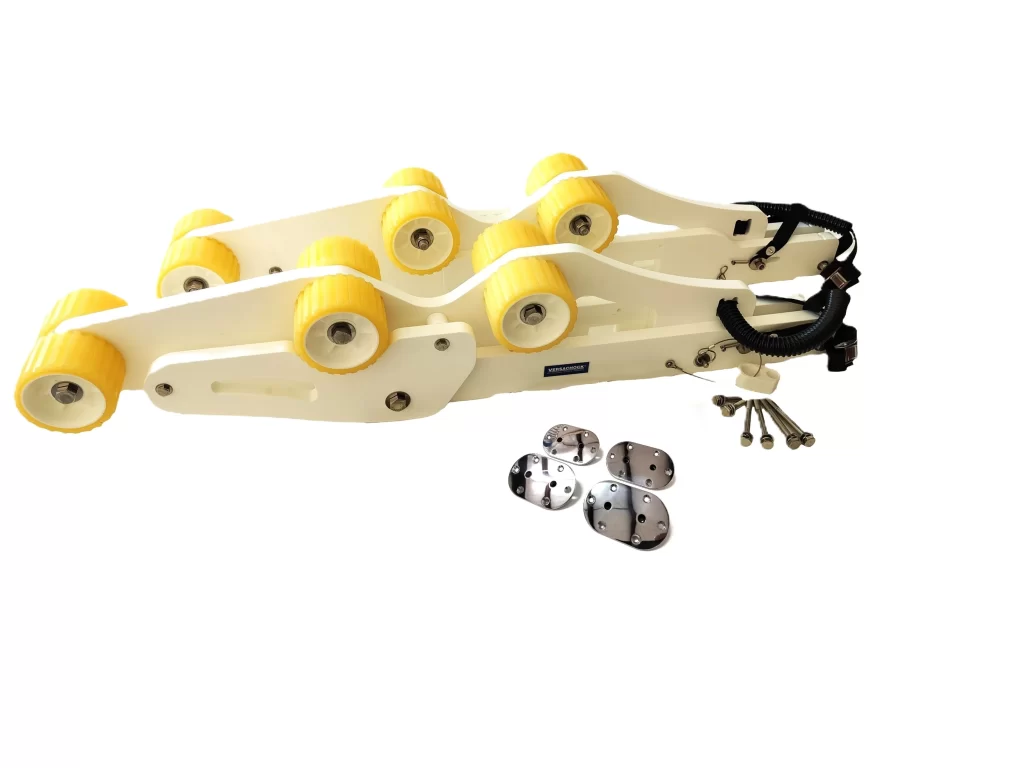

Versachock’s heavy duty tilting davit chocks allow for easy loading of light to heavier weight dinghies onto swim platforms.The height is higher than VersaChock’s lighter duty model, for applications requiring more clearance above water. Davits are removable by simply removing the included bolts from our super low-profile oval threaded deck plates (mini poly wrenches included. Davit arms have an automatic self-latching feature, which locks the arms when rotated down (safety hitch pins must also be installed for securing arms). Limit straps are also included to limit the angle of the arms while loading. Large 5″ TPR (poly) wheels assist in loading and cradling water craft.Various winch options are offered separately. Also works great with VersaChock’s exclusive blind fastener system (VCBLINDWIDE25) when access to backside of mounting surface, or a second set of hands is not possible! Capacity: 650 lbs (standard platform mounting)/ 450 lbs (narrow platform mounting). 1/4″ oval head screws required for installation (not included). Dimensions (apx.) – 48″ L x 5″ W x 10″ T.

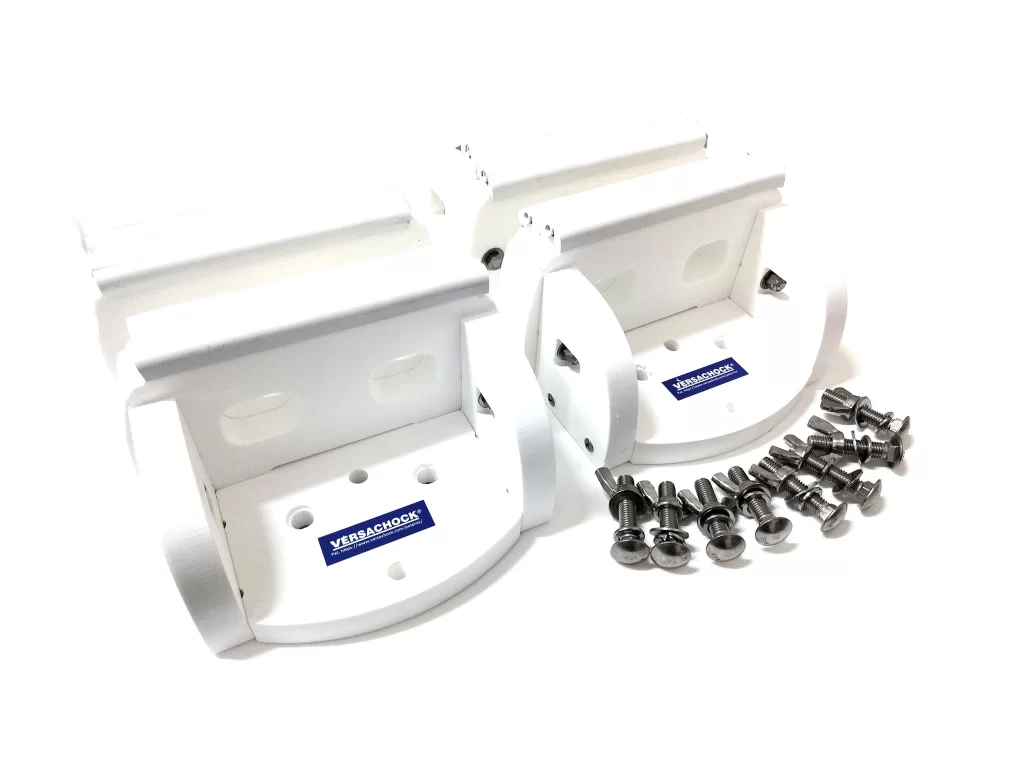

VersaChock custom channel tender chocks are custom made to fit the exact shape of hull (drawings are usually available from most OEM manufacturers or use our easy template kit we can ship to you). Made to order with the super quick turnaround time! Chocks are made of high-quality HDPE plastic that will stand up to the harsh marine environment for many years. Hull cushioning strips help protect the hull. Channel mounted chocks install with eight ½” carriage bolts/wing nuts/washers, allowing the chocks to be removed in seconds without the use of any tools for a TRIP FREE deck
Product Details:

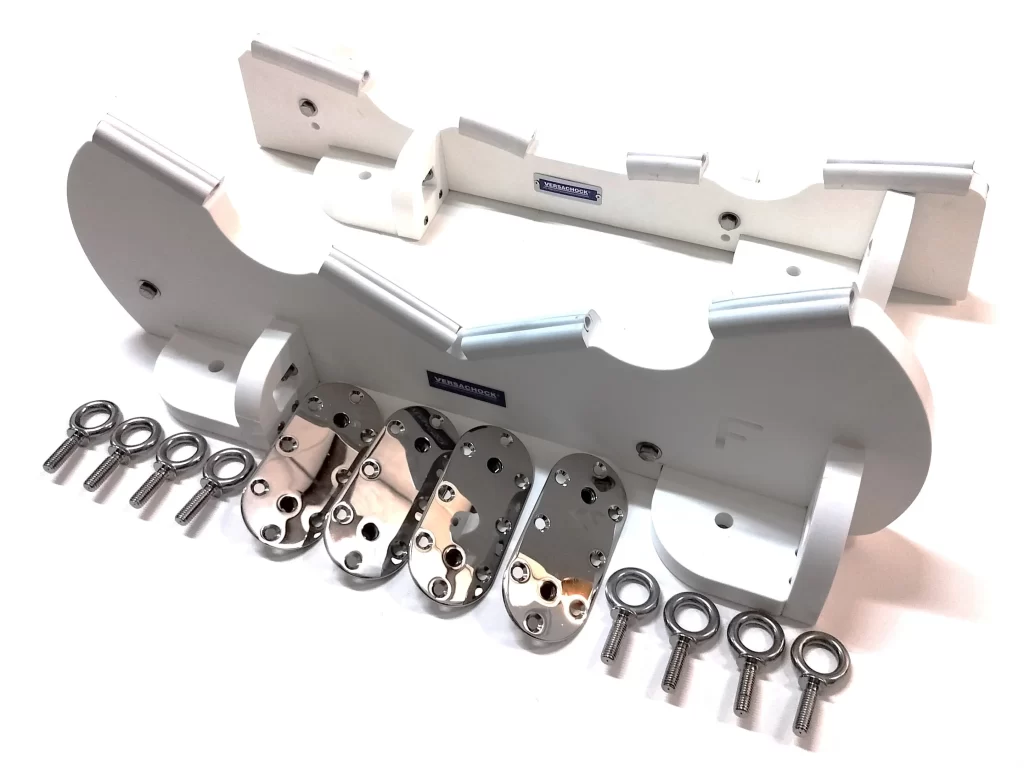

VersaChock heavy duty custom tender chocks are custom made to fit the exact shape of hull (drawings are usually available from most OEM manufacturers or we can assist in getting templates). Made to order with the super quick turnaround time! Chocks are made of high-quality HDPE plastic and stainless-steel hardware that will stand up to the harsh marine environment for many years. Mechanically attached hull cushioning strips help protect the hull. Chocks are installed with 4 oval threaded deck plates and ½” eyebolts, allowing the chocks to be removed in seconds without the use of any tools for a TRIP FREE deck! Also works great with VersaChock’s exclusive blind fastener system (VCBLINDWIDE35) when access to backside of mounting surface or a second set of hands is not possible. Template drawings can be sent prior to fabrication to check accuracy. Tie downs required (not included). ¼” screws required for installation (not included).
VersaChock custom tender chocks are custom made to fit the exact shape of hull (drawings are usually available from most OEM manufacturers or we can assist in getting templates). Made to order with the super quick turnaround time! Chocks are made of high-quality HDPE plastic and stainless-steel hardware that will stand up to the harsh marine environment for many years. Mechanically attached hull cushioning strips help protect the hull. Chocks are installed with 4 oval threaded deck plates and ½” eyebolts, allowing the chocks to be removed in seconds without the use of any tools for a TRIP FREE deck! Also works great with VersaChock’s exclusive blind fastener system (VCBLINDWIDE35) when access to backside of mounting surface or a second set of hands is not possible. Template drawings can be sent prior to fabrication to check accuracy. Tie downs required (not included). ¼” screws required for installation (not included).
VersaChock channel chocks are removable, super compact and universal. Perfect for securing rigid hull tenders, dinghies, and jet skis on swim platforms with channels. Kits come with eight ½” stainless steel carriage bolts that are inserted into swim platform channels (channels are existing/not sold by VersaChock). Double wide bunks are made with high quality HDPE and semi-rigid hull cushioning strips. Remove chocks when not in use for a TRIP FREE deck!

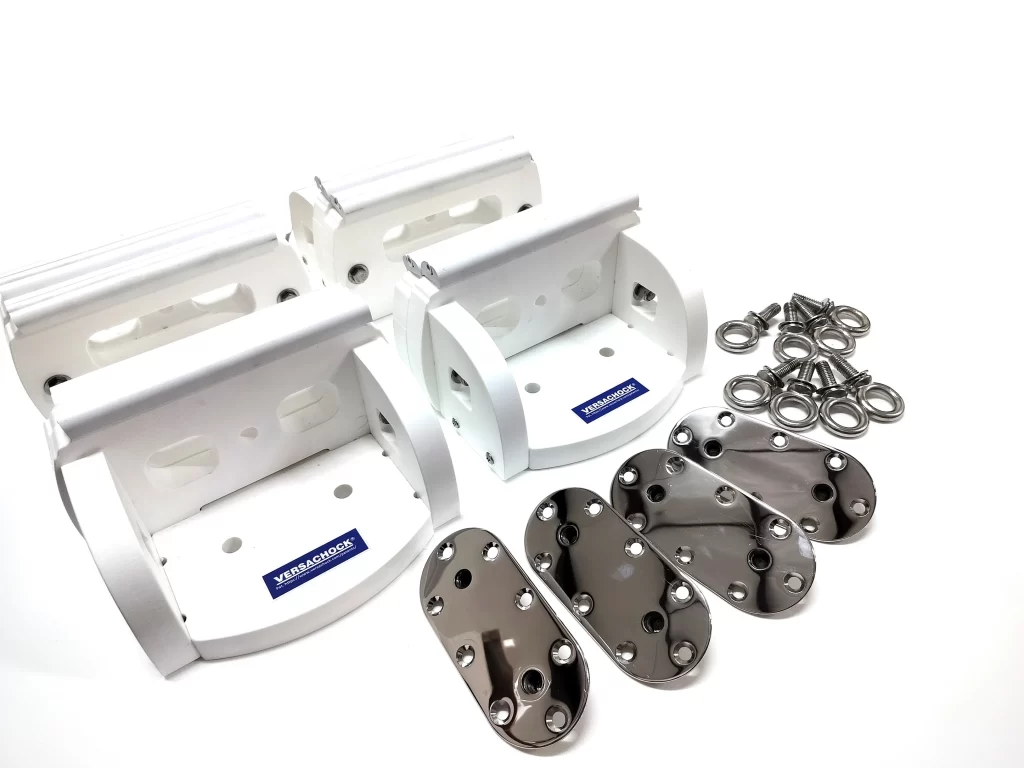

VersaChock generation 2 tender chocks are removable, super compact and universal. Perfect for securing rigid hull tenders, dinghies and jet skis on boat decks, swim platforms, and docks. Kits come with four permanently threaded deck plates, which are low profile and have smooth edges. Four removable, double wide HDPE bunks with hull cushioning strips remove quickly and store easily. Compatible with VersaChock’s exclusive blind fastener installation kits (VCBLINDWIDEDBL) for quick and easy installation. Remove chocks when not in use for a TRIP FREE deck! Dimensions (apx.) – 10″ L x 7″ W x 6″ T.
Weaver spacer bolts for boat chocks.
